Fabric Metal Detector

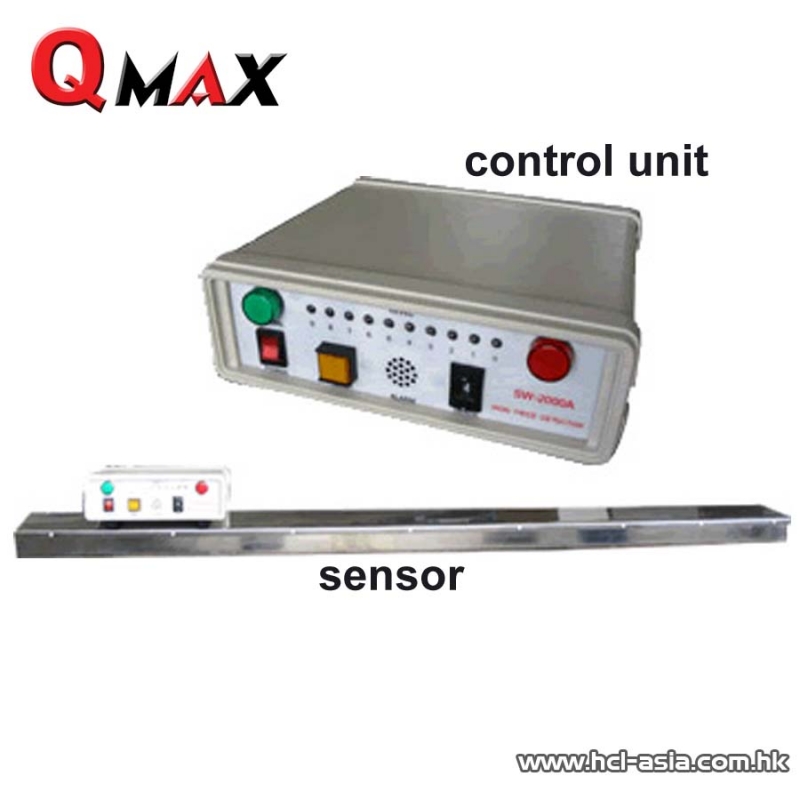

  Fabric Metal Detector
  Model: SW-2000A
  Catalog: Datasheet download
User Manual (Chinese only)
  SW-2000A is a multi-functional metal detector designed for bed sheet, cloth and down-filled coat use detecting all ferrous metal contaminants

  • Stainless steel shell
  • Sensor made from high quality magnetic material
  • Hi-stable design can be installed on fabric inspection machine
  • Touch-button integrated control panel
  • 10 LED indicating metal signal level
  • SMD technology
  • Detection method: Magnetic induction
  • Sensitivity: Fe Ø 1.2mm (max 80mm detection thickness)
  • Detection adjustment: 1-8 steps
  • Detection area: 2020 x 100mm
  • Alarm method: Buzzer & Lamp
  • Power source: AC85-265V 45-65Hz
  • Rated output: 25W
  • Dimension (mm): Sensor 2200 L x 100 W x 45 H
  •                            Control Unit 210 L x 190 W x 85 H
  • Weight: Sensor 33kg / Control unit 2.5 kg
