Brand: X-Rite
Model: Judge LED / Judge LED Plus
Judge LED light booth was officially launched in March 2025 by X-Rite.
Judge LED light booth is an eco-friendly, LED color evaluation tool that offers instant warm-up and consistent lighting to ensure accurate evaluations across the supply chain.
X-rite light booth complies with ISO and ASTM standards.
X-rite light box series strictly follows a number of important international viewing standards, including but not limited to:
• ISO standards: ISO 3664, ISO 3668, ISO 13076, ISO 23603, etc.
• ASTM standard: ASTM D1729, etc.
In addition, X-rite light booh also meets other international standards, such as DIN, ANSI, BSI, AATCC, SAE, CIE, etc. X-rite light booth automatically adjusts the voltage of the light lamp through a built-in sensor. It has the characteristics of real-time stability. It can monitor and control the illumination retained in the light box, and can meet international standards during the course of use. Each ligth booth has been carefully calibrated before shipment to ensure consistency and accuracy of performance.
Specification:
- Total LED light sources: 7
- Light Source Range (12 types) : D65, L31-9, L30-8 (B2), L35-8, L40-8 (B3), A, UV, D50, CWF, TL84, U30, U35
- Lamp Life: >8000hrs
- Cabinet Color: Munsell N7
- Optional: variable angle viewing stand
- HS Code: 90275000
Light source Configuration (option 1 to 5):
|
|
option name |
|
7 light sources including |
| 1 |
|
JLSADBEFNSY |
|
D65, L30-8 (B2), L35-8, L40-8 (B3), A, UV, D50 |
| 2 |
|
JLSAGCIFNSY |
|
D65, L40-8 (B3), A, UV, CWF, TL84, U30 |
| 3 |
|
JLSAHCIFNSY |
|
D65, L40-8 (B3), A, UV, CWF, TL84, U35 |
| 4 |
|
JLSAJBEFNSY |
|
D65, L31-9*, L30-8 (B2), L35-8, L40-8 (B3), A, UV |
| 5 |
|
JLSADGFCNSY |
|
D65, L40-8 (B3), A, UV, D50, CWF, U30 |
* Note: L31-9 is H&M standard light

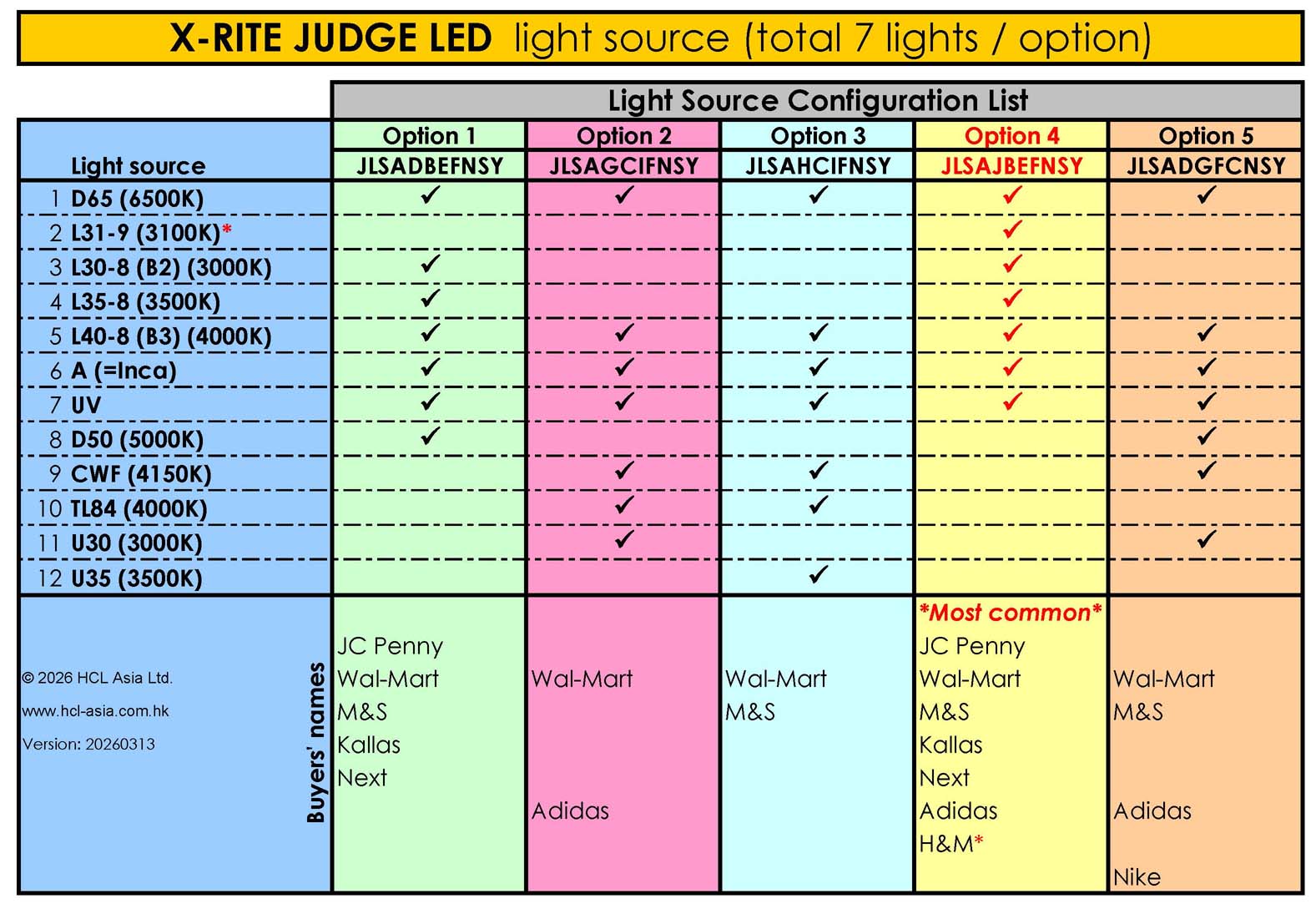

Light source configuration list:
LED light color temperature details:
- D65 (6500K)
- L31-9 (3100K) *H&M standard light
- L30-8 (B2) (3000K)
- L35-8 (3500K)
- L40-8 (B3) (4000K)
- A (=Inca)
- UV
- D50 (5000K)
- CWF (4150K)
- TL84 (4000K)
- U30 (3000K)
- U35 (3500K)
Shipping details:
Judge LED
1. Viewing Booth Dimensions: H 430 x W 690 x D 430 mm

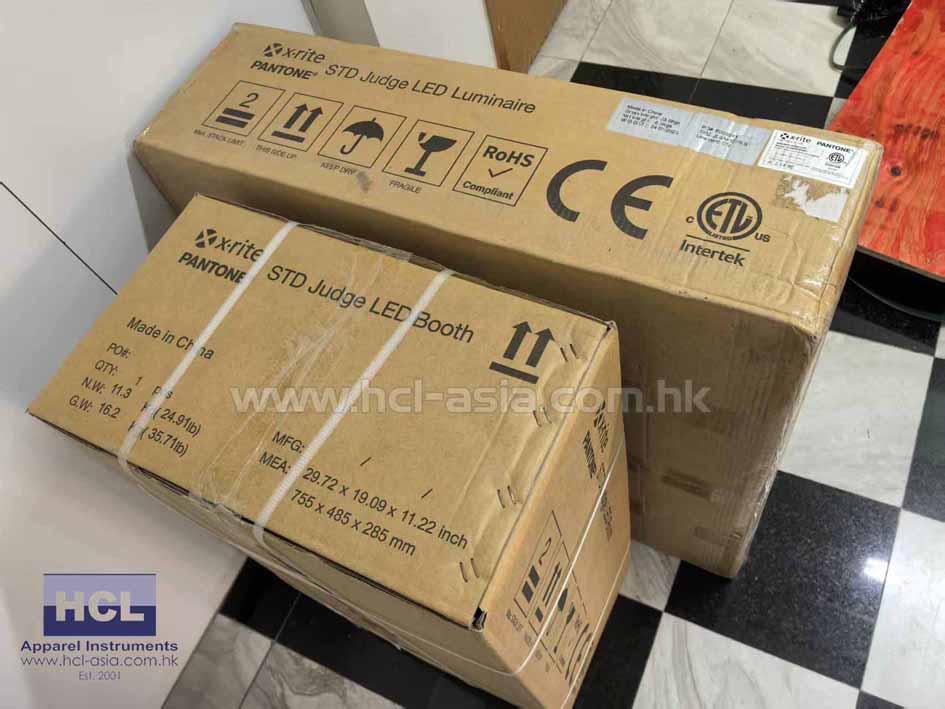

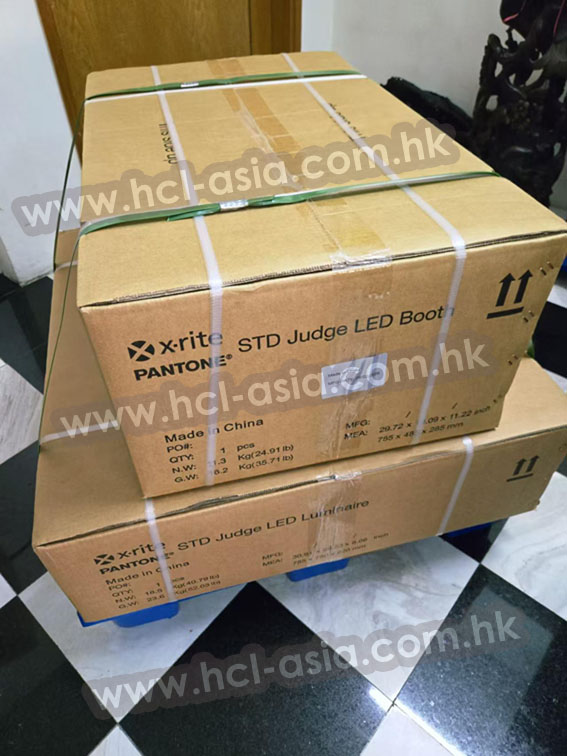

2. Package size / Weight
#1/2：785 x 750 x 220 mm / 24 kg (Luminaire)
#2/2: 760 x 490 x 290 mm / 17 kg (Booth)

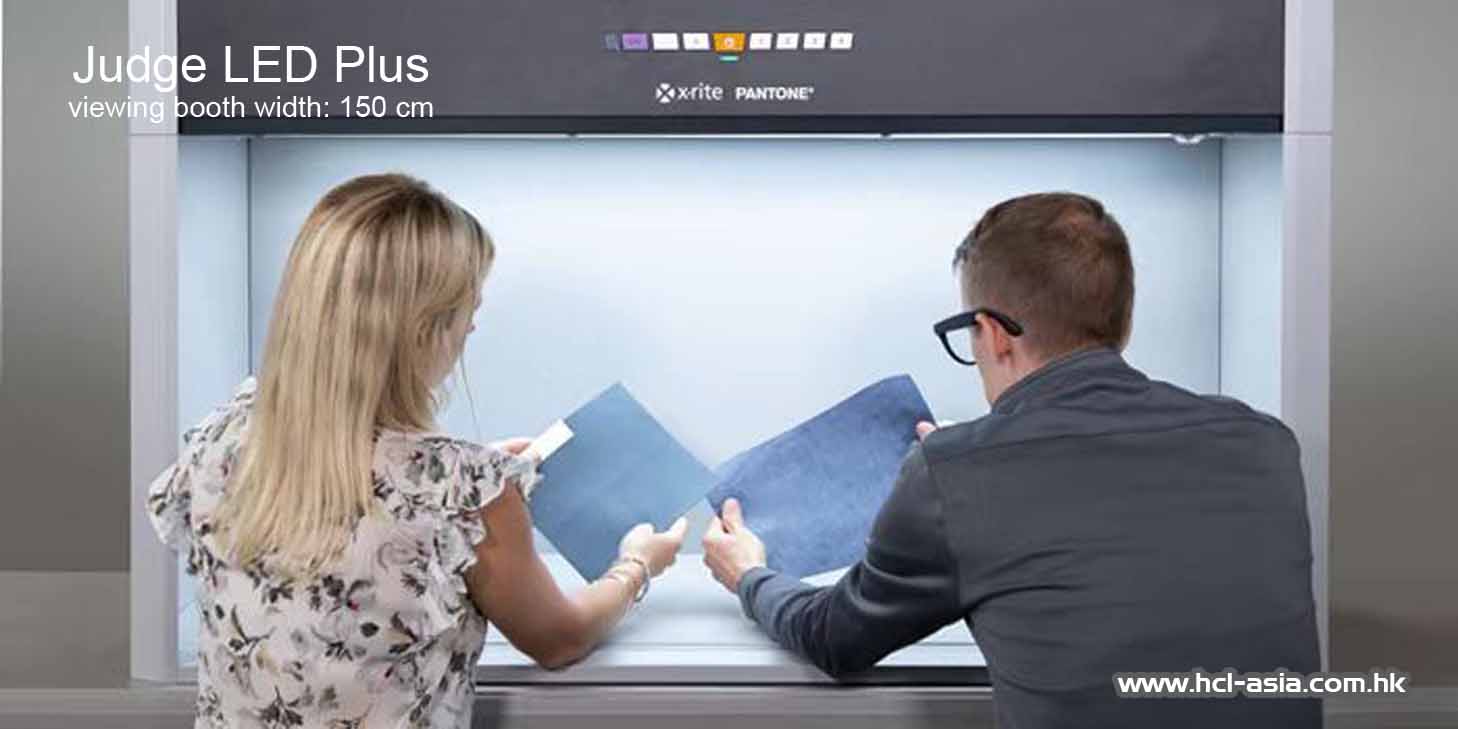

Judge LED Plus
1. Viewing Booth Dimensions: H 440 x W 1495 x D 700 mm
2. Package size / Weight
#1/2：1450 x 775 x 262 mm / 54 kg (Luminaire)
#2/2: 1475 x 660 x 275 mm / 37 kg (Booth)
Features
- Offers 7 LED light sources allowing for a variety of options to suit specific needs
- Low power consumption: 30W (Judge LED) / 70W (Judge LED Plus)
- Internal and low-gloss standard Munsell gray (N7) for the background
- The main application for use in the textile, paint, ink, printing, plastics, etc.
Source Description
- D65 CIE D65 average northern sunlight, color temperature: 6500K
- TL84 European shops light sources, color temperature: 4000K
- INCA tungsten, display window lighting, color temperature: 2856K
- UV light source of Ultra-Violet, wavelength: 365nm
- CWF cool white fluorescent in U.S. stores, color temperature: 4150K
