  Model: NF-2
  Catalog: Datasheet download
User Manual

  Image:



  NF-2 is a standard needle detector for clothing, clothing accessories & footwear industries meeting all leading companies' requirement worldwide.


FEATURES:
  • Cycled, 9 pairs of sensor, excellent anti-disturbance performance

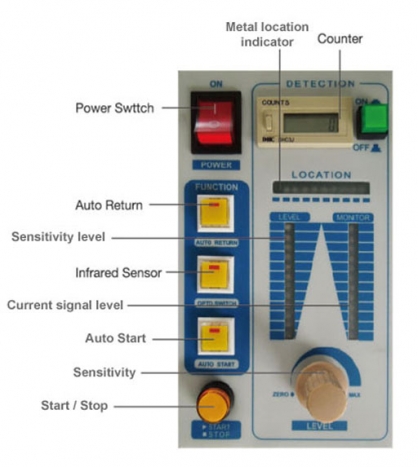

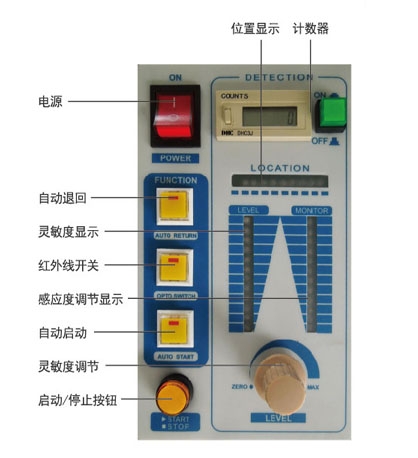

  • Based on LED bar displayed control panel
  • Hi accuracy detection locating technology, LED indication
  • Level setup indication and real-time sensitivity display
  • Optional conveying mode after alarm is triggered
  • Optional automatic conveyor restart
  • Reliability mechanical frame design, highly stable during detection
  • Designed for universal AC power supply, switching power supply

SPECIFICATIONS:
  • Model: NF-2
  • Detection method: Magnetic induction
  • Detection sensitivity: ø 0.8mm (center of aperture)
  • Sensitivity adjustment: 10 steps
  • Detection Height: 100mm (standard)
  • Detection Width: 650mm
  • Alarm method: Buzzer、Lamp
  • Belt speed: 32m/min(50HZ); 40m/min(60HZ)
  • Power source: AC200-240V 50-60HZ
  • Rated output: 140W
  • Dimension: 1650mm(L) x 1050mm(W) x 900mm(H)
  • Net Weight: 220Kg

SERIES:
Detection Height    Detection Sensitivity
100mm Fe              ø 0.8mm (Standard)

120mm Fe              ø 1.0mm
150mm Fe              ø 1.2 - 1.5mm
200mm Fe                     ø 1.5 - 2.0mm
