Light Box
  Light Box

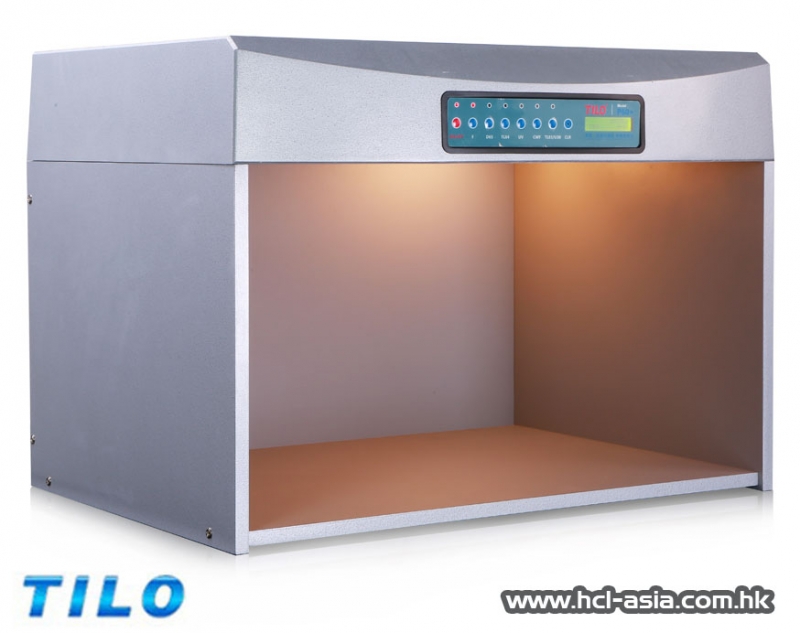

  Model: P60+ / T60+
  Catalog: Datasheet download

  Image:



  Brand:TILO (China)

Model: P60+ (6 light sources)Upgraded
Model: T60+ (5 light sources)Upgraded

P60+ / T60+ can accommodate up to 6 light sources.The Color matching booths / Colour assessment cabinet / Color Light Box can be applied to the industries that need to perform color difference testing as follows: as the premiere designer and manufacturer of color viewing and lighting products for the Graphic arts, Photographic, Textile, Dyeing, Packaging, Printing, Leather, Inks, Knitwear, Plastic, Automotive and Ceramics industries.

Features:
  1. TILO Color assessment cabinet / Color Viewing Cabinet / Color View Light Booth render color more accurately. With 6 different light sources(D65, TL84, CWF, TL83/U30, F, UV), which can detect the metamerism.
  2. Meets or exceeds major international standards for visual color evaluation including: ASTM D1729, ISO3664, DIN, ANSI and BSI.

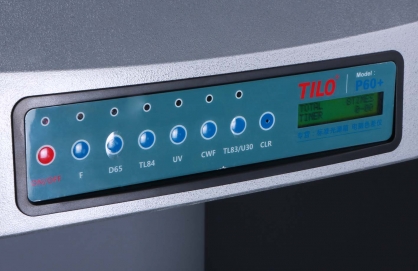

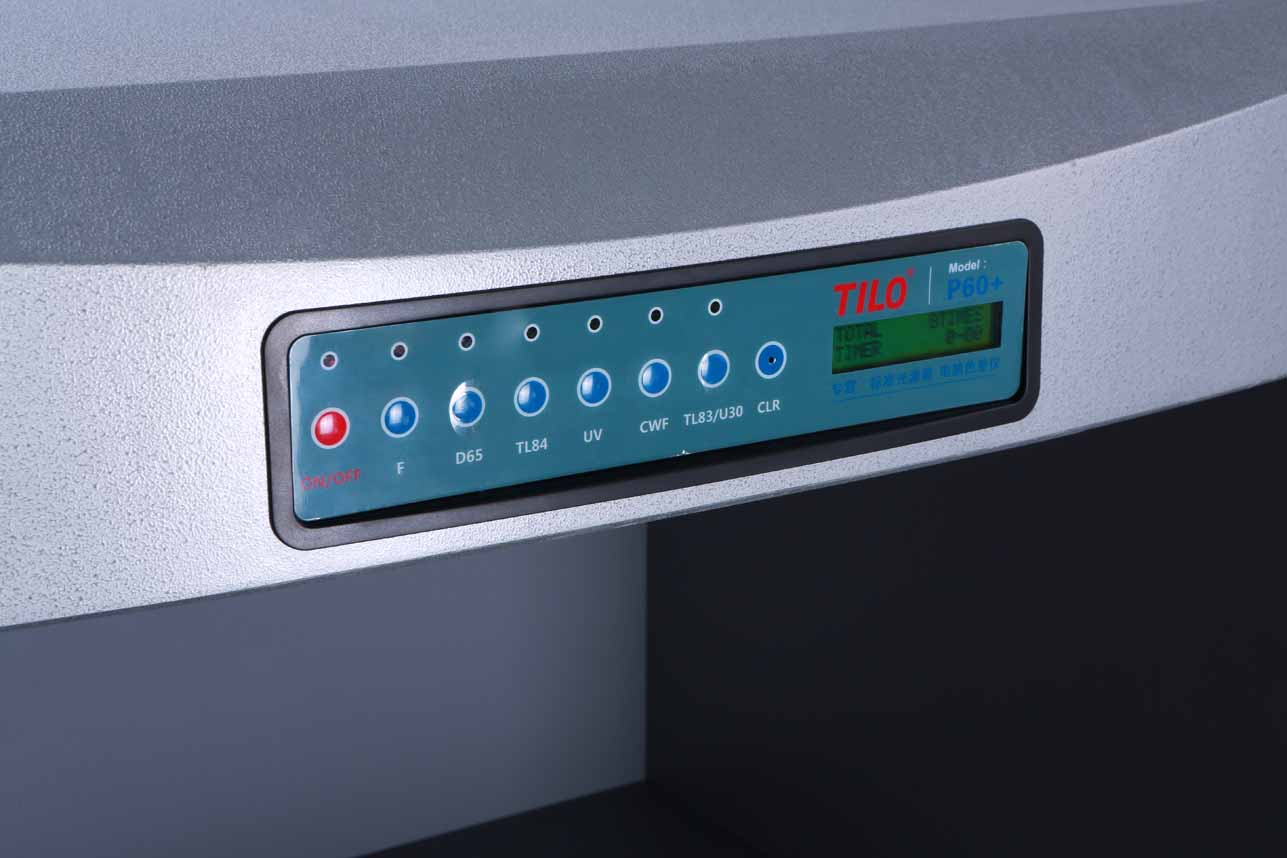

  3. Easy to operate by using individual switches for each light source.
  4. Elapsed time meter for tracking optimal lamp replacement.
  5. Automatically alternating among light sources.
  6. No warm-up time or flickering which insures quick and reliable color judgment.
  7. Economic power consumption and low heat generation for high light efficiency.
  8. The dimension can be made by customized.
  9. Internal and low-gloss standard gray (N5) for the background

Applications:

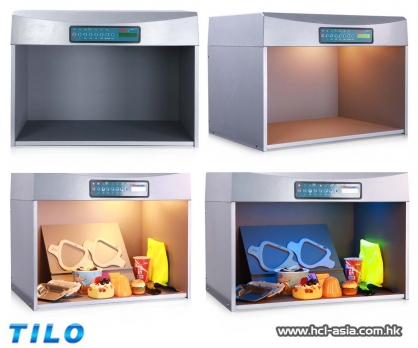

Colors appear differently under different lighting sources. To avoid/reduce the assessment error when performing color contrast, we can make use of a Light Booth / Viewing Booth / Color Light Box to simulate different light sources to obtain an objective assessment of color and color difference, anytime, anywhere.

Specifications:

Items

Specifications

Configured light sources

D65TL84CWFFUV,TL83 (6 light sources) P60+
D65TL84CWFFUV (5 light sources) T60+

Weight

19.5kg

Dimensions (mm)

695x552x502mm

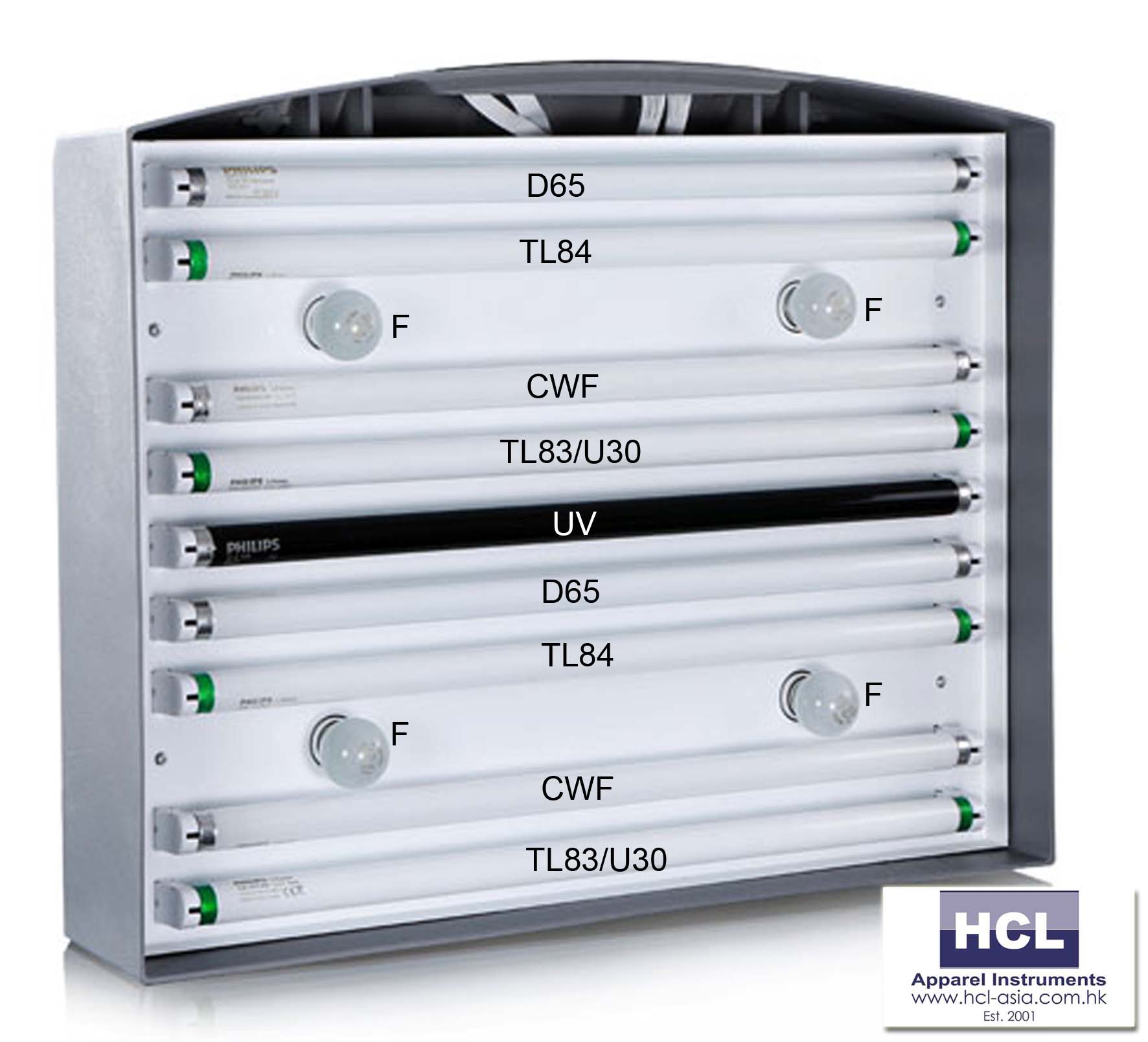

Light sources

Name

Color temperature

Power

Light tube Brand

D65   International standard artifial daylight

6500K

18W

3NH

TL84  Applied to stores in Europe , Japan & China

4000K

18W

PHILIPS

CWF  (Cool White Fluorescent) American Standard

4150K

18W

PHILIPS

F/A   "Sun-setting light yellow" incandescent light source (imitation of sunset)

2700K

40W

3NH

UV  viewing under ultraviolet light to detect and evaluate optical brighteners or fluorescent pigments

wave-length:365nm

18W

PHILIPS

TL83   Warm White Fluorescent in Europe

3000K

18W

PHILIPS


Packing info:
Packed with wooden box for safety protection
Wooden Box Meas.: 81 x 66 x 32 cm
Inner Carton Meas.: 79 x 64 x 28 cm
G.W.: 38 kg / N.W. 22.5 kg
