Brand: SCHMIDT (Germany)

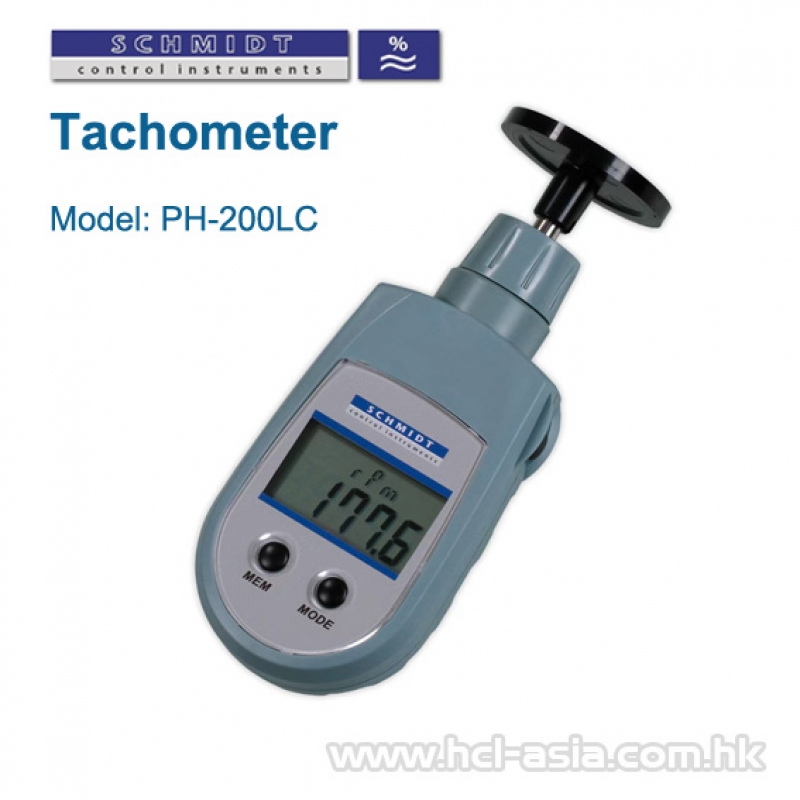

Model: PH-200LC
A tachometer is an instrument used to measure the rotational speed (RPM - Revolutions Per Minute) of a shaft or disk in a machine, typically an engine or motor. It indicates how fast the engine's crankshaft is spinning, helping operators monitor and control performance.
Tachometer PH-200LC offers both contact and non-contact method of measuring.
How it works:

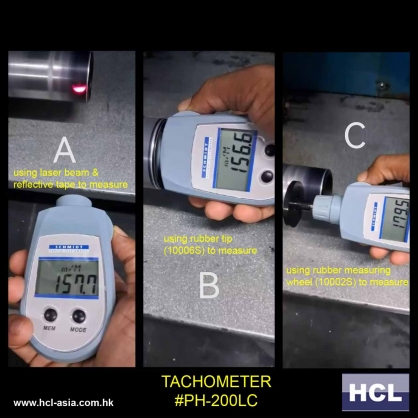

In contact mode, it uses screwed-in adapter for measuring rpm, surface speed and length.
In non-contact mode, it uses laser beam and reflective tape for measuring rpm.
Features:
- Easy to read LCD display
- Built-in memory for Max, Min, Average, Last and 10 seperate readings for recall in display.
- Compact, rugged plastic housing
- 10 user selectable measuring units
Specifications
1. Measuring range:
- Revolutions (non contact): 6-99999 rpm
- Revolutions (contact): 6-25000 rpm
- Speed: e.g. 1.0 - 3810 m/min
- Length: e.g. 0.2 - 99999 m
2. Accuracy:
- 6 - 599 (±1 rpm) ±1 digit
- 60 - 25000 (±2 rpm) ±1 digit
- 250001 - 99999 (±0.01% of the reading) ±1 digit
- Speed and Length: ±0.4% of the reading ±1 digit
3. Batteries: 3 x 1.5V Type AA
4. Housing material: Plastic (ABS)
5. Dimensions: 150 x 64 x 32 mm (LxWxH)
6. Weight (net/gross): 230g / 450g

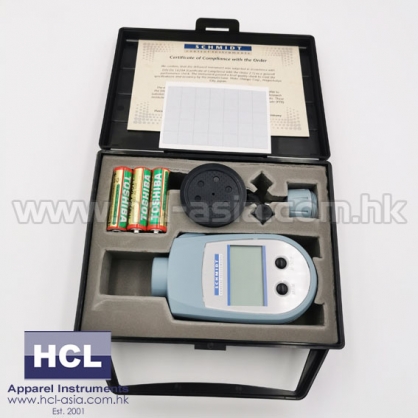

PH-200LC package includes:
1. Tachometer in carrying case (batteries included depending on the air freght restrictions on the region)
2. Certificate of compliance with order
3. Instruction manual in English
4. 1x Adapter (LC)
5. 35x reflective tapes
6. 1x rubber tip (A) 10006S
7. 1x funnel (B) 10007S
8. 1x rubber measuring wheel (F) 10002S
 |
|
