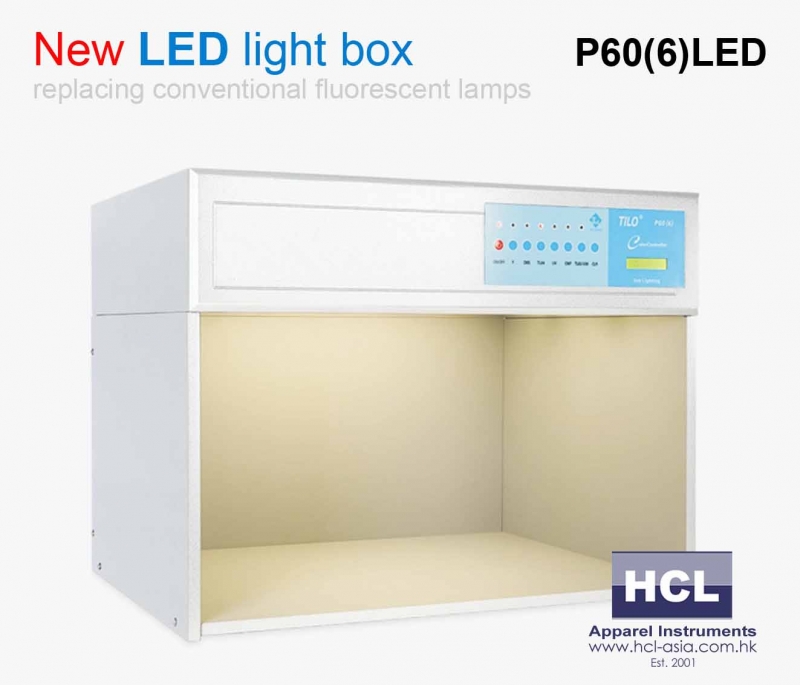

Brand：TILO (China)
Model: P60 (6) LED
TILO color light box, adding ultraviolet light wave part, has a detection effect close to natural daylight. It can be used independently or together with other light sources to detect fluorescent brighteners on products, dyes and coatings more effectively.
It also has the advantage of multi-light source switching, which can easily detect whether there is metamerism between samples (this phenomenon means that the color of the sample matches under a certain light source, but it does not match when switched to another light source).
Features:
- Total LED light sources: 6
- Light Tube Length： 60cm (24")
- Display the usage time and total time of each light source
- The light source is automatically switched, with the function of metamerism
- No need to preheat, no flicker, can ensure fast and reliable color evaluation
- Low energy consumption, no heat (no need for heat dissipation), high luminous efficiency
- Small size, easy to use, low price
- Characteristics of LED tubes: more energy-efficient and durable than fluorescent lamps
Note: conventional fluorescent lamps are replaced by new LED lamps
Applications:
The scope of application of P60 (6) six-light source standard light source box: texile, toys, printing and dyeing, plastics, paint, ink, printing, pigments, chemical ceramics, footwear, leather, hardware, food, cosmetics and other color management fields. It is used to accurately check the color deviation of the goods.
Specifications:
|
Items
|
Specifications
|
|
Configured light sources
|
D65，TL84，CWF, TL83, F, UV (6 light sources)
|
|
Light tube length
|
60 cm (24 inch)
|
|
Booth dimensions (mm)
|
L 712 x W 535 x H 545 mm
|
|
Optional accessory
|
45 degree fixed angle viewing table
|
|
Light sources
|
|
Name
|
Color temperature
|
Power x Qty
|
Light tube Brand
|
|
D65 International standard artifial daylight
|
6500K
|
18W x2
|
PHILIPS |
|
TL84 Applied to stores in Europe , Japan & China
|
4000K
|
18W x2
|
PHILIPS |
|
CWF (Cool White Fluorescent) American Standard
|
4150K
|
18W x2
|
PHILIPS |
|
TL83 (Warm White Fluorescent) European Standard
|
3000K
|
18W x2
|
PHILIPS |
|
F "Sun-setting light yellow" incandescent light source (imitation of sunset)
|
2700K
|
40W x4
|
3nh |
|
UV viewing under ultraviolet light to detect and evaluate optical brighteners or fluorescent pigments
|
365nm
|
18W x1
|
PHILIPS |
Packing info:
Package meas. (L x W x H): 80x64x30 cm
Gross Weight: 27.5 kg
HS Code: 90275000
