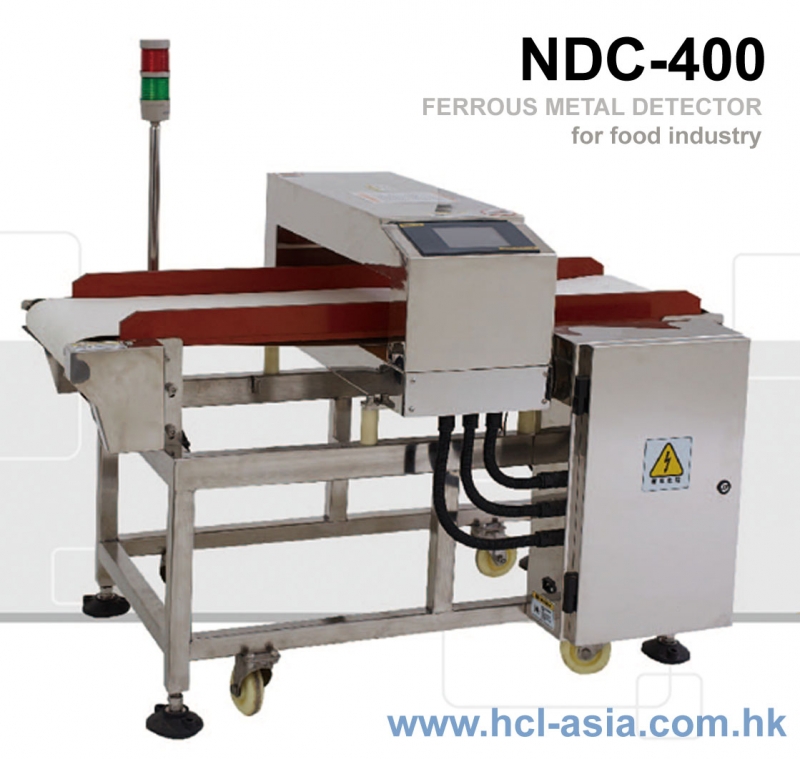

Model: NDC-400
End-of-the-line Ferrous Metal Detection Systems
NDC-400 is designed to detect ferrous metal only and is particularly suitable for aluminum foil packaging.
Applications: Food industry, chemical industry, pharmaceutical industry, etc.
Features:
- Product sensitivity auto-setup
- Touch screen
- Product counter
- Password protection
- LED metal locating indicator
- Detection height and width is customizable
- Stainless steel machine body shell
- Dual language interface: English or Chinese
Specifications
- Model: NDC-400
- Detection method: Magnetic induction
- Sensitivity: Fe ø1.0mm (Center of Aperture)
- Detection Height: 100mm (standard)
- Detection Width: 400mm
- Alarm method: Buzzer, LED indicator
- Belt speed: 32m/min
- Power source: AC 220V / 50 Hz
- Rated output: 120W
- Machine dimensions: 1300mm(L) x 850(W) x 1100mm(H)
- Weight: 180 kg
- H.S. code: 85437000
Sensitivity
Detection Height Detection Sensitivity
80mm ø 0.7mm Fe
100mm * ø 1.0mm Fe (Standard)
120mm ø 1.0mm Fe
150mm ø 1.2 - 1.5mm Fe
200mm ø 1.5 - 2.0mm Fe
Remarks:
- * = standard model (based on user's product dimensions)
- Effective tunnel height is 30mm lower than the above listed sizes
- Fe = ferrous metal
- Non-Fe = non ferrous and SUS = stainless steel 304 is not expected to be detected
- Sensitivity remarks: The above listed sensitivity is based on standard free-space test condition. The final sensitivity performance can differ and is subject to the inherent product signal produced
|
|
