SafGuard Snap Button Tension Tester (=Universal Garment Accessories Tester)
Standard Reference:
- Japan Product Liability Law
- ASTM F963, D4846-96
- EN71, M&S P115A (for snap), P115 (for button), etc.
Approved & Adopted by:
# World leading textile testing labs: e.g. BV, CTL, INTERTEK, SGS, STR, TUV, etc.
Test result: All snaps and buttons are required to withstand attachment strength of 17 lbs (7.7kg) for 10 seconds. If failure to so, the snap button is deemed to be unsafe.
Standard Package (UGA-ST01) includes the followings:
- a1 STA-0020 IMADA™ Force Gauge FB-30K (made in Japan)
- a2 Hook adapter
- a3 Grip Carabiner
- a4 STA-0118 Upper Tip-Top Grip
- a5 STA-0005 Upper Grasp Button Grip (30L = 19mm)
- a6 STA-0004 Calibration Weight 15 LB (=6.804kg)
- a7 STA-0002 Upper Stud Grip
- a8 STA-0007 Upper Long Nose Vise Grip
- a9 STA-0042 Lower Fabric Clamp (26L = 16mm)
- a10 STA-0006 Lower Grasp Button Accessories Kit (30L = 19mm)
- a12 Lever Arm, set of 2
- a13 STA-0040 Bench Top Stand with flywheel
- Operation Manual
Optional Accessories:
- b1 STA-0111 Zipper test kit
- b2 STA-0008 Upper Three Pronged Grip
- b3 STA-0084 Multifunction Vise Clamp
- b4 STA-0035 Goggles
- b5 STA-0037 Small Part Cylinder - Plastic

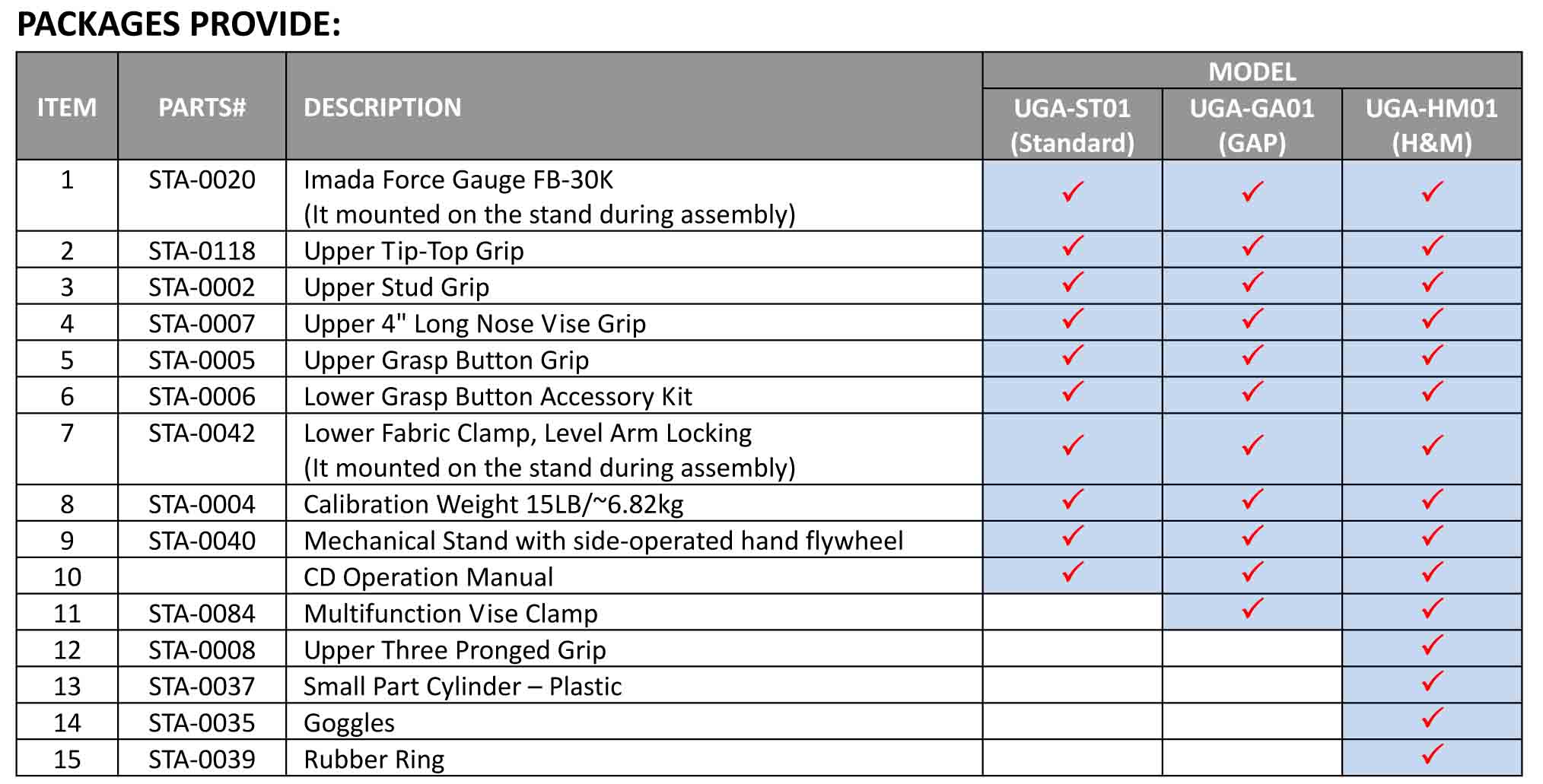

** GAP(UGA-GA01), H&M(UGA-HM01), M&S, NIKE, NEXT Packages are also available for purchase
Pull force directive:
- 22 lbs / 10 kg for EU
- 17 lbs / 7.7 kg for US
Packing info:
- G.W.: 47 kg
- Carton Meas.: 108 x 42 x 48 cm
- H.S. Code: 9024 8000
