Footwear & Plush Toys
  Footwear & Plush Toys

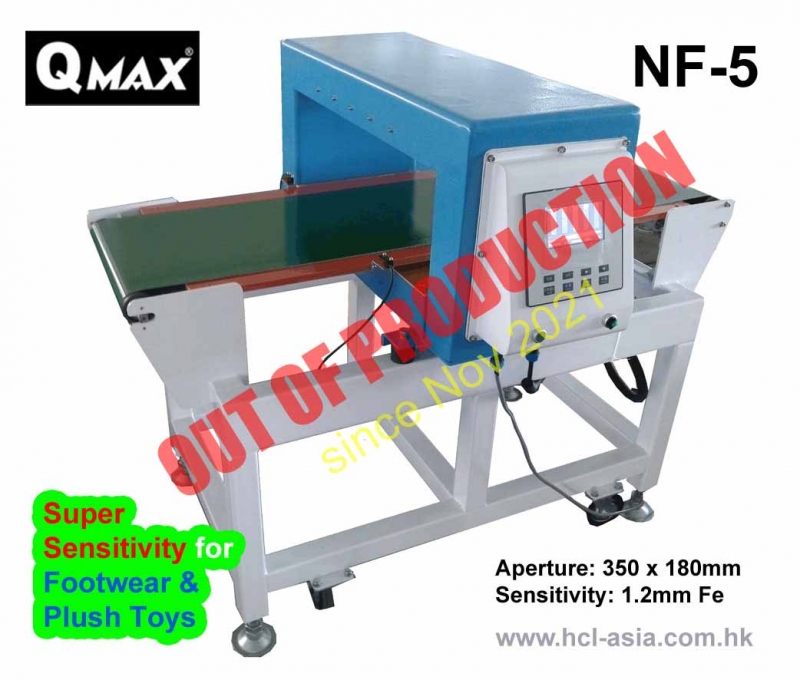

  Model: NF-5
  Catalog: Datasheet download

  Image:



  NF-5 is a newly launched model in 2016.  This detector has an enhanced sensitivity in regard to the conventional needle detector in the marketplace.  1.2mm ferrous sphere can be detected with an aperture height of 180mm.  The aperture is now bigger but the sensitivity remains high. This detector is ideal for footwear & plush toys industries meeting all leading world-class retailers' requirement.

FEATURES:
  • Cycled, 5 pairs of magnetic sensor, excellent anti-disturbance performance
  • High accuracy detection locating technology

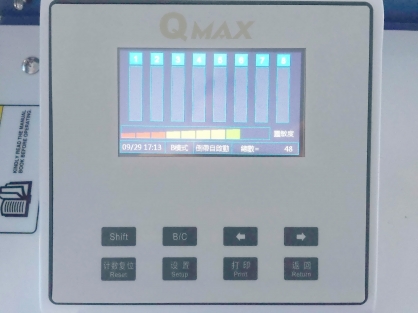

  • Use LCD display technology with Chinese & English user interface
  • Level setup indication and real-time sensitivity display
  • Optional conveying mode after alarm is triggered
  • Optional automatic conveyor restart
  • Reliability mechanical frame design, highly stable during detection
  • Designed for universal AC power supply, switching power supply
SPECIFICATIONS:
  • Model: NF-5
  • Detection method: Magnetic induction
  • Detection sensitivity: ø 1.2mm (center of aperture)
  • Sensitivity adjustment: max. 100 steps per channel
  • Detection Height: 180mm (standard) (effective height 170mm)
  • Detection Width: 350mm
  • Alarm method: Buzzer
  • Belt speed: 24m/min
  • Power source: AC100-240V 50-60HZ
  • Rated output: 90W
  • Dimension: 1200mm(L) x 860mm(W) x 970mm(H)
  • Net Weight: 200Kg
SERIES:
Detection Height    Detection Sensitivity
120mm Fe           ø 0.8mm
180mm Fe           ø 1.2mm (Standard)

ERNDD/201604
